Atlas 9OHSC 9,000 lb Overhead
$5,199.00
$3,299.00
The Atlas 9OHSC Combo combines a 9,000 lb capacity overhead 2-post vehicle lift with the Atlas Lawn Mower Adapter for expanded vehicle service capability. The package is designed for automotive garages and service environments that need to lift compatible cars, SUVs, light-duty trucks, lawn tractors, ATVs, UTVs, golf carts, and other supported small vehicles.
The 9OHSC features an overhead open-floor design, single-piece columns, three-stage front arms, two-stage rear arms, automatic arm restraints, a single-point lock release, rubber carriage guards, and dual hydraulic chain-drive cylinders. The clear-floor configuration keeps the work area between the columns unobstructed.

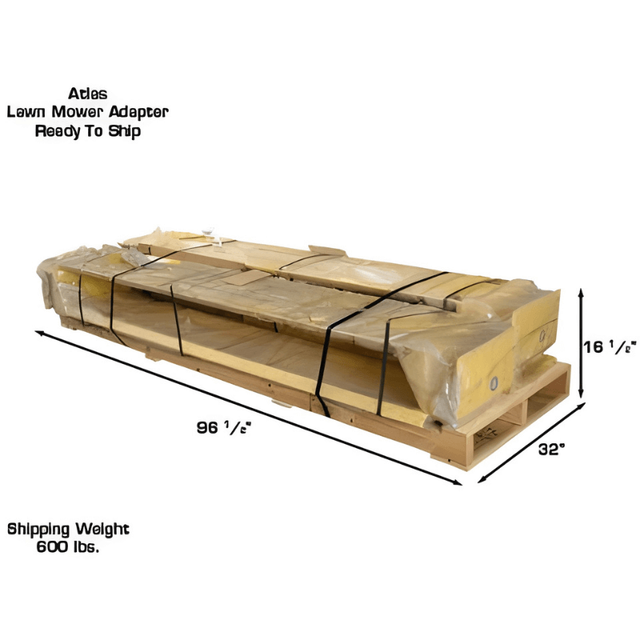

The included Lawn Mower Adapter provides adjustable wheel platforms for compatible small vehicles. Adapter lifting capacity varies according to the lift, vehicle wheelbase, positioning, and weight distribution and can be rated up to 5,000 lb under applicable conditions.
Specifications:
Brand: Atlas Automotive Equipment
Lift Model: 9OHSC
Product Type: 2-Post Vehicle Lift and Lawn Mower Adapter Combo
Vehicle Lift Capacity: 9,000 lb
Overall Height: 142 in
Overall Floor Width: 133.5 in
Outside Column Width: 125.5 in
Inside Column Width: 109.5 in
Drive-Through Clearance: 100.5 in
Maximum Lift Height Without Adapters: 76.75 in
Maximum Lift Height With Adapters: 87.75 in
Minimum Arm Height: 4 in
Front Arms: 3-Stage
Rear Arms: 2-Stage
Hydraulic System: Dual Chain-Drive Cylinders
Lock Release: Single Point
Power Requirement: 220V Single Phase
Recommended Circuit Breaker: 30 Amp
Lift Shipping Weight: Approximately 1,430 lb
Minimum Concrete Thickness: 4 in
Minimum Concrete Strength: 3,000 PSI
Lawn Mower Adapter Capacity: Up to 5,000 lb depending on vehicle configuration
Lawn Mower Adapter Wheelbase Range: 32–90 in
Lawn Mower Adapter Wheel Well Width: 12 in
Included Accessories: Lawn Mower Adapter, 12-piece truck adapter set, and mounting hardware
