Atlas PV10PX 10,000 lb Commercial Grade Overhead 2-Post Vehicle Lift
$4,099.00
$2,199.00
The Atlas PV10PX is a 10,000 lb capacity commercial-grade overhead 2-post vehicle lift designed for automotive service shops, garages, and vehicle maintenance applications. Its adjustable overhead configuration and symmetric/asymmetric arm positioning provide flexibility for lifting a range of compatible cars, SUVs, pickup trucks, and light-duty vehicles.
The PV10PX features direct-drive hydraulic cylinders, automatic arm restraints, three-stage front arms, two-stage rear arms, a single-point lock release, padded carriages, and a padded overhead shut-off bar. The configurable arm arrangement allows vehicles to be positioned in either symmetric or asymmetric configurations depending on the application.
The lift offers two adjustable overall height settings of 143-1/8 inches and 147 inches. Maximum lifting height is 72-1/2 inches without adapters and up to 81-1/4 inches with the included adapters. A 12-piece truck adapter set and mounting hardware are included.
Specifications:
Brand: Atlas Automotive Equipment
Model: PV10PX
Manufacturer Part Number: XH-PV10PX-FPD
Product Type: Overhead 2-Post Vehicle Lift
Lifting Capacity: 10,000 lb
Arm Configuration: Symmetric / Asymmetric
Overall Height: 143-1/8 in or 147 in

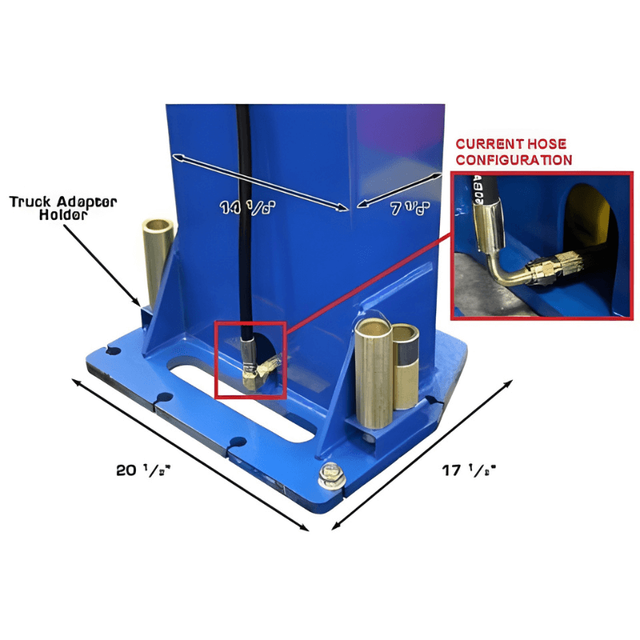

Overall Floor Width: 137-1/2 in
Overall Width with Motor: 145 in
Outside Column Width: 125-1/2 in
Inside Column Width: 110-1/8 in
Symmetric Drive-Through Clearance: 96-1/4 in
Asymmetric Drive-Through Clearance: 90-1/4 in
Maximum Lift Height Without Adapters: 72-1/2 in
Maximum Lift Height With Adapters: 81-1/4 in
Minimum Arm Height: 4-1/2 in
Electrical Requirement: 220V Single Phase
Recommended Circuit Breaker: 30 Amp
Shipping Weight: Approximately 1,875 lb
Included Accessories: 12-piece truck adapter set and mounting hardware
