KATOOL KT-AM120SD 12,000 lb Asymmetric Clear Floor 2-Post Vehicle Lift
$2,799.00
$1,679.00

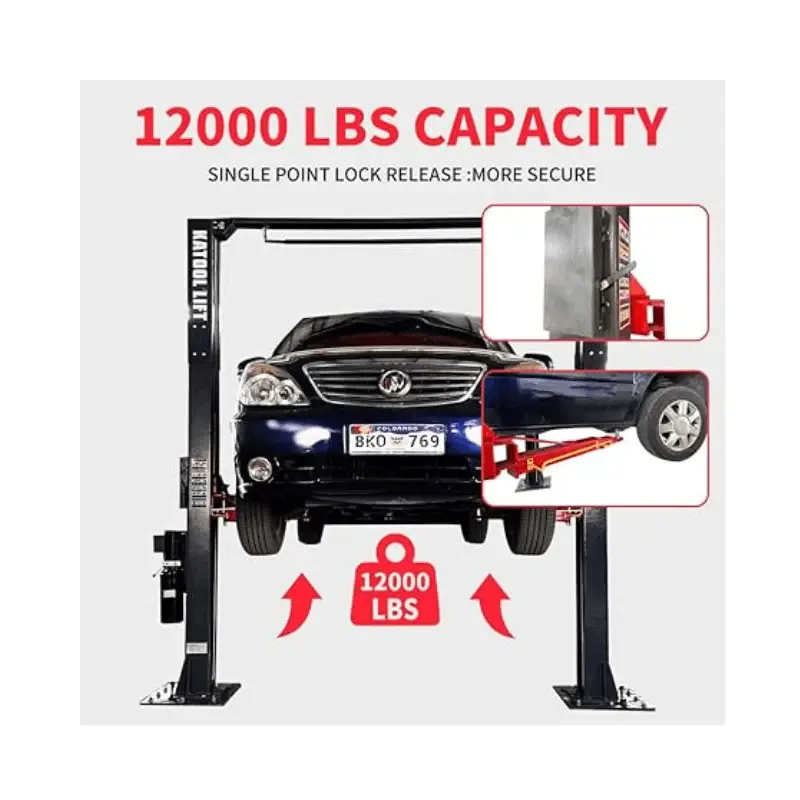

The KATOOL KT-AM120SD is a 12,000 lb capacity clear-floor 2-post vehicle lift designed for automotive repair shops, service centers, and garage applications. Its asymmetric arm configuration provides flexible vehicle positioning and improved access around compatible cars, SUVs, vans, and light-duty trucks within the lift's rated capacity.
The KT-AM120SD features direct-drive hydraulic cylinders, a single-point lock release, an overhead safety shutoff bar, rubber door protection, and adjustable support adapters. The clear-floor overhead configuration keeps the work area between the columns unobstructed for convenient access beneath the vehicle.
The lift reaches a maximum lifting height of 70.87 inches and has a minimum pad height of approximately 4.3 inches. Its 95-inch drive-through clearance and 111-inch inside-column width provide space for vehicle positioning.
Specifications:
Brand: KATOOL
Model: KT-AM120SD
Product Type: Clear-Floor 2-Post Vehicle Lift
Arm Configuration: Asymmetric
Lifting Capacity: 12,000 lb
Maximum Lifting Height: 70.87 in
Minimum Lifting Height: Approximately 4.3 in
Overall Height: 144 in
Overall Width: 131.5 in
Outside Column Width: 120.4 in
Inside Column Width: 111 in
Drive-Through Clearance: 95 in
Front Arm Reach: 33.5–55.5 in
Rear Arm Reach: 33.5–45 in
Lock Release: Single Point
Motor Power: 4 HP
Power Requirement: 220V / 60Hz / Single Phase
Product Weight: Approximately 1,369 lb
Minimum Concrete Thickness: 5.9 in
Minimum Concrete Strength: 3,000 PSI
