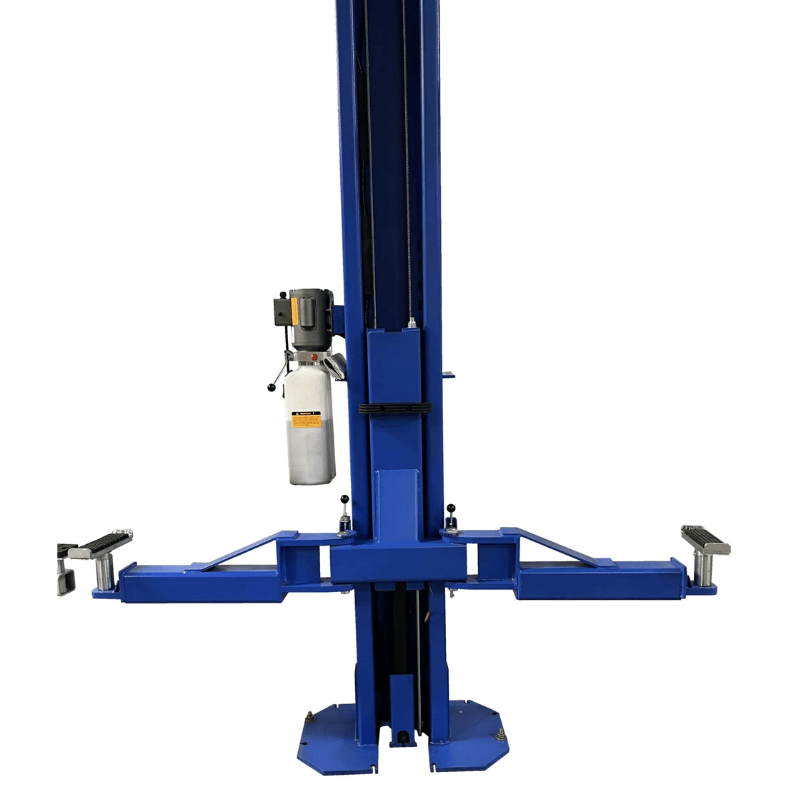

Tuxedo TP15KCX 15,000 lb Heavy-Duty Symmetric Clear Floor 2-Post Vehicle Lift
$7,349.00
$4,299.00
The Tuxedo TP15KCX is a 15,000 lb capacity heavy-duty symmetric 2-post clear floor vehicle lift designed for professional automotive service applications. Its high lifting capacity and heavy-duty construction make it suitable for servicing compatible pickup trucks, vans, SUVs, and commercial vehicles within the lift's rated capacity.
The TP15KCX features chain-drive cylinders, symmetric lifting arms, dual-point lock release, automatic arm restraints, low-profile spin-up lift pads, internal hose routing, rubber door guards, and an overhead padded shut-off bar. The clear-floor configuration keeps the work area between the columns unobstructed for convenient access beneath the vehicle.
The lift provides a maximum lifting height of 76.5 inches, 120.75 inches of clearance between the columns, and 109.375 inches of drive-through clearance. Stackable height adapters are included to accommodate different vehicle lifting points.
Specifications:
Brand: Tuxedo
Model: TP15KCX
Product Type: Heavy-Duty 2-Post Clear Floor Vehicle Lift
Configuration: Symmetric
Lifting Capacity: 15,000 lb
Maximum Load Per Arm: 3,750 lb
Overall Height: 179-3/8 in
Overall Width with Power Unit: 148-3/8 in
Maximum Lifting Height: 76-1/2 in
Minimum Pad Height: 5 in
Width Between Columns: 120-3/4 in
Drive-Through Clearance: 109-3/8 in
Short Arm Reach: 37–52 in
Long Arm Reach: 37–52 in
Lifting Speed: Approximately 45 seconds
Power Requirement: 220V / 20 Amp / Single Phase
Shipping Weight: Approximately 2,575 lb
Stackable Height Adapters Included
