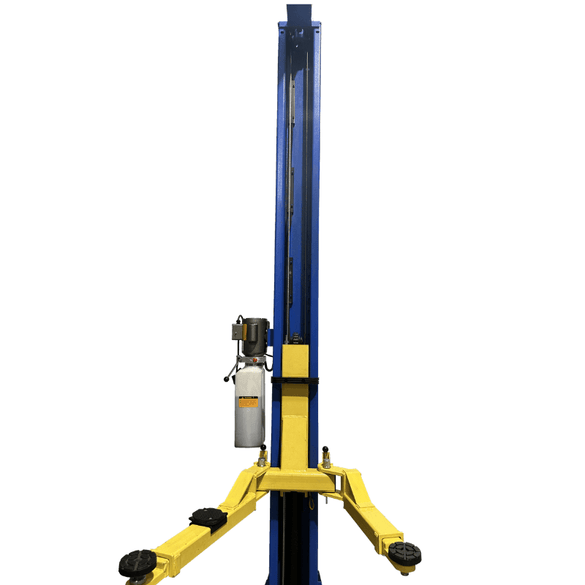

Tuxedo TP9KACX 9,000 lb Asymmetric Clear Floor 2-Post Vehicle Lift
$1,440.00
$1,229.00
The Tuxedo TP9KACX is a 9,000 lb capacity asymmetric 2-post clear floor vehicle lift designed for automotive maintenance and service applications. Its overhead clear-floor configuration keeps cables and hydraulic lines above the work area, providing unobstructed access beneath the vehicle.
The TP9KACX features asymmetric lifting arms, chain-drive cylinders, dual-point lock release, automatic arm restraints, low-profile adjustable swivel pads, internal hose routing, rubber door guards, and an overhead shut-off bar with a safety switch. The asymmetric arm configuration provides additional vehicle door clearance for convenient access to the interior.
The lift provides a maximum lifting height of 72 inches, 96-inch drive-through clearance, and 113-5/8-inch width between columns. Stackable height adapters and saddle pad adapters are included for compatibility with different vehicle lifting points.
Specifications:
Brand: Tuxedo
Model: TP9KACX
Product Type: 2-Post Clear Floor Vehicle Lift
Configuration: Asymmetric
Lifting Capacity: 9,000 lb
Maximum Load Per Arm: 2,250 lb
Overall Height: 142-7/8 in
Overall Width with Power Unit: 138 in
Maximum Lifting Height: 72 in
Minimum Pad Height: 4 in
Width Between Columns: 113-5/8 in
Drive-Through Clearance: 96 in
Front Arm Reach: 29–41 in
Rear Arm Reach: 37–57 in
Lifting Speed: Approximately 50 seconds
Power Requirement: 220V / 20 Amp / Single Phase
Shipping Weight: Approximately 1,370 lb
Included Adapters: Stackable height adapters and saddle pad adapters
