Tuxedo TP9KFX 9,000 lb Symmetric Floor Plate 2-Post Vehicle Lift
$2,355.00
$1,989.00
The Tuxedo TP9KFX is a 9,000 lb capacity symmetric 2-post floor plate vehicle lift designed for automotive maintenance and service applications. Its low overall height and floor plate configuration make it suitable for garages and service bays where overhead clearance is limited.

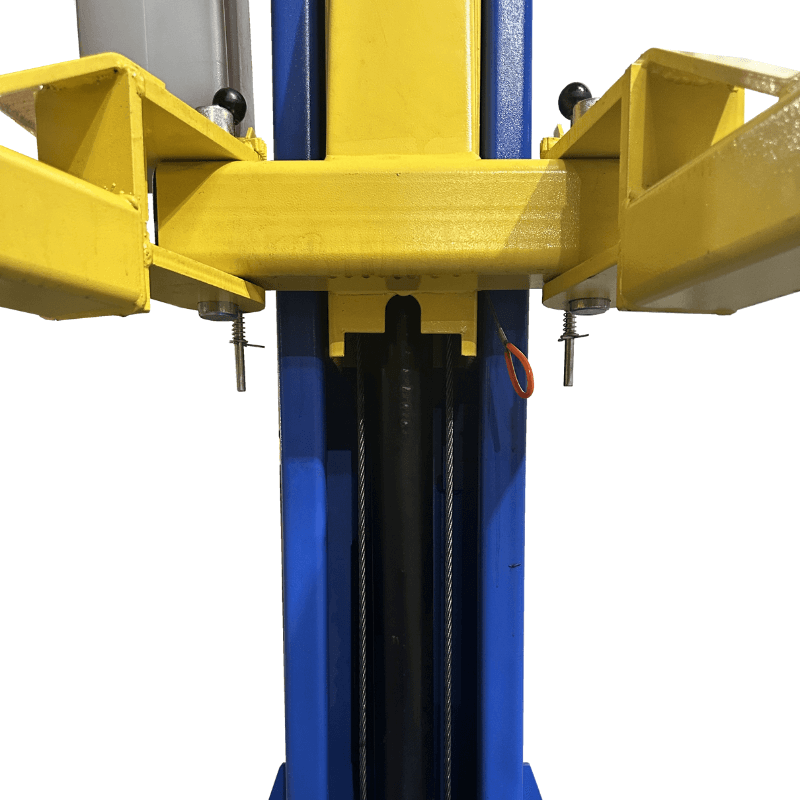

The TP9KFX features symmetric lifting arms, chain-drive cylinders, dual-point lock release, automatic arm restraints, internal hose routing, rubber door guards, and low-profile adjustable swivel lift pads. Stackable height adapters are included to accommodate a range of vehicle lifting points.
With a maximum lifting height of 72 inches, 101-inch drive-through clearance, and symmetric 31-to-45-inch arm reach, the TP9KFX is designed for servicing passenger vehicles, SUVs, and compatible light-duty vehicles within its rated capacity.
Specifications:
Brand: Tuxedo
Model: TP9KFX
Product Type: 2-Post Floor Plate Vehicle Lift
Configuration: Symmetric
Lifting Capacity: 9,000 lb
Maximum Load Per Arm: 2,250 lb
Overall Height: 111-7/8 in
Overall Width with Power Unit: 134-5/8 in
Maximum Lifting Height: 72 in
Minimum Pad Height: 4 in
Width Between Columns: 110-3/8 in
Drive-Through Clearance: 101 in
Short Arm Reach: 31–45 in
Long Arm Reach: 31–45 in
Lifting Speed: Approximately 50 seconds
Power Requirement: 220V / 20 Amp / Single Phase
Shipping Weight: Approximately 1,270 lb
Stackable Height Adapters Included
